LAN-WDM_Epoxy Type 7.6deg
料號：BF0-UDEMQ-XXXX
產品規格
| LAN-WDM, Epoxy Type 7.6deg | ||
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 1280~1330 |

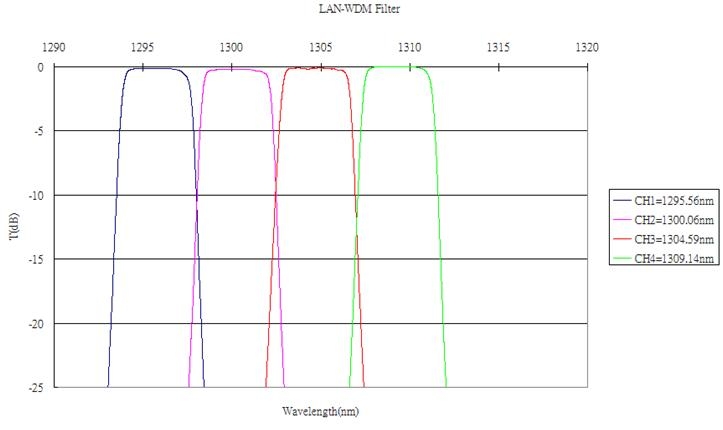

| Centeral Wavelength | nm | 1295.56, 1300.06, 1304.59, 1309.14 |
| Angle of Incident | degree | 7.6 (Incident air) 5.05 (Incident epoxy n=1.5) |
| Pass Band Width | nm | >= +/-1.5 |
| Adjacent Channel Transmission Isolation | dB | >= 25 (+/-3.0 nm) |
| Max IL within PassBand | dB | <= 0.5 |
| Ripple within PassBand | dB | <= 0.3 |
| Polarization Dependent Loss within PassBand | dB | <= 0.2 |
| Reflection of Backside AR Coating | % | <= 0.2 |
| Size (Length*Width*Thickness) | mm | (1.0+/-0.05)*(0.75+/-0.05)*(0.6+/-0.05) |
| Edge/Corner Chip | mm | <= 0.1 |
| Scratch/Dig | 40 / 20 | |
