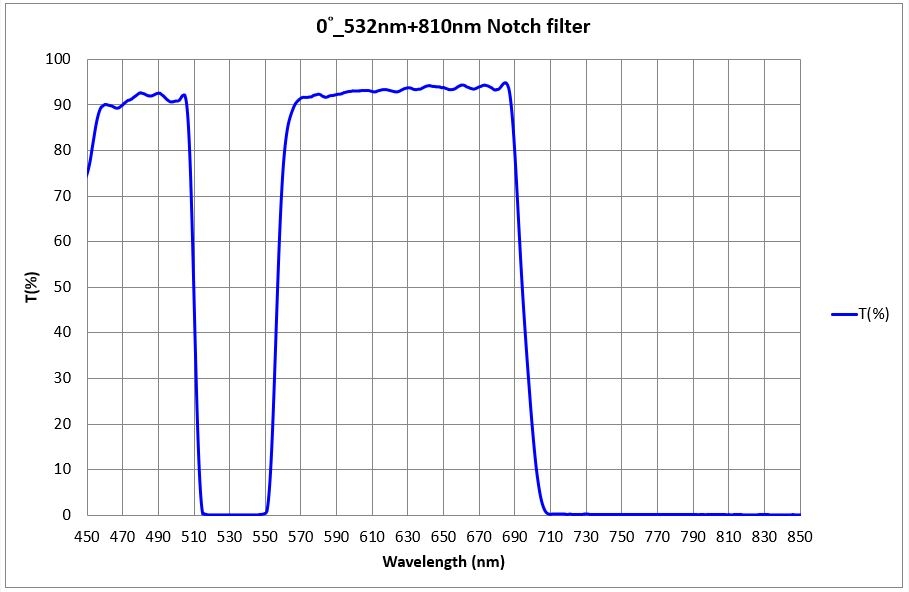

0°_532nm+810nm Notch filter
料號：MI0-JPA85-0508
產品規格
| 0°_532nm+810nm Notch filter | ||
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 526~840 |
| Angle of Incident | degree | 0° |
| Block band 1 | nm | 526~538nm R>99.5% |
| Block band 2 | nm | 710~840nm R>99.5% |
| Block band 1&2 | OD | 532nm & 810nm OD>6 |
| Size (Length*Width*Thickness) | mm | TBD |
| Scratch/Dig | 60 / 40 | |
