光通被動濾片

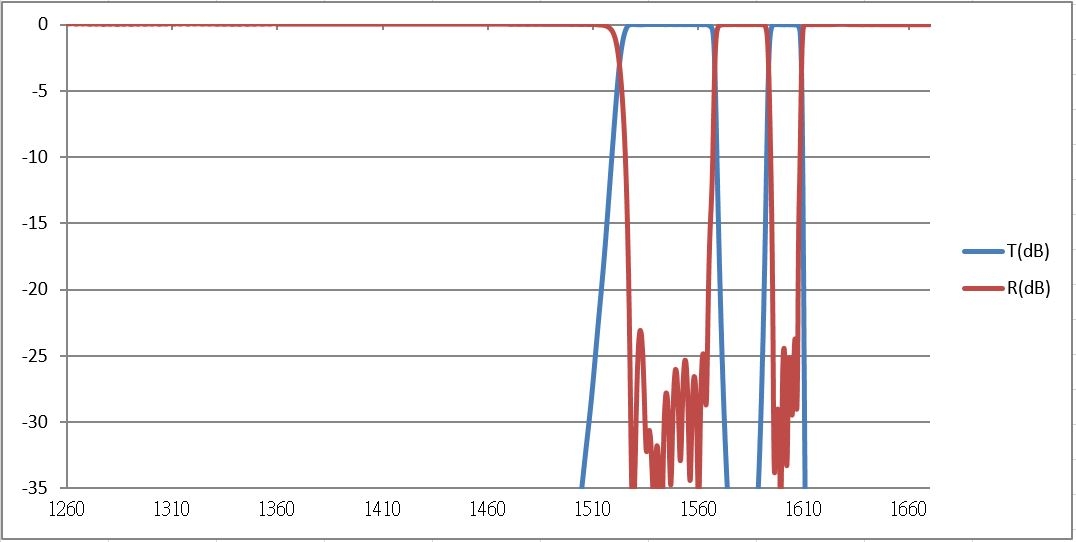

TWDM, T 1545+1600 / R 1310+1490+1577+1625

料號:DB0-1AAAZ-2565, DB0-AAG7D-2666

產品規格

Parameters Unit Specifications
Operation Wavelength nm 1260~1650
Angle of Incident degree 1.8
Pass Band Width nm 1530~1565 & 1596~1603
Stop Band Width nm 1260-1500 & 1575~1581 &1615~1650
Transmission Isolation dB >=30 or 35
 Max IL within PassBand dB <=0.3
Ripple within  PassBand dB <= 0.2
Reflection Isolation dB >=13 or 15
Max IL within StopBand dB <=0.2
Ripple within StopBand dB <=0.15
Polarization Dependent Loss within PassBand dB <= 0.1
Reflection of Backside AR Coating <= 0.2
Size (Length ´ Width ´ Thickness)  mm (1.4+/-0.1) ´ (1.4+/-0.1) ´ (0.9~1.4)
Wedge Angle degree 0.2
Edge/Corner Chip mm <= 0.1
Scratch/Dig   40 / 20
