光通被動濾片

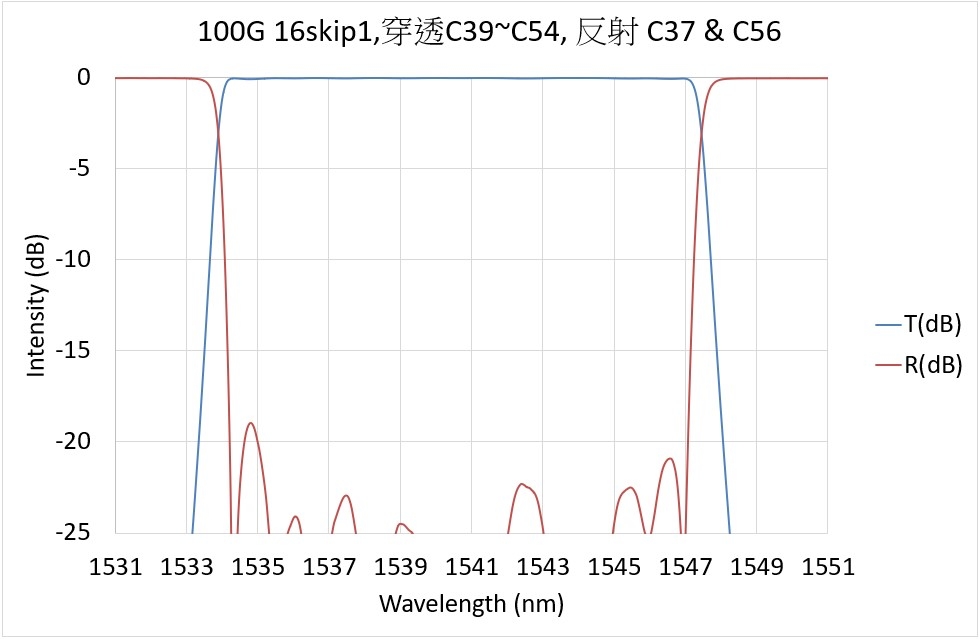

100G 16skip1,穿透C39~C54, 反射 C37 & C56 = CWL C46.5/1540.16
料號：BF0-9JAAE-5354
產品規格
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 1500~1565 |
| Angle of Incident | degree | NA |
| Central Wavelength Tolerance @-3.0dB, AOI=0deg | nm | C46.5 +0.3~+0.7 nm |
| Pass Band Width (cover C39~C54 with ITU+/-0.18nm) | nm | 12.19 |
| Reflect Band Width (cover C37 & C56 with ITU+/-0.18nm) | nm | 14.72 |
| Transmission Isolation | dB | >=15 |
| Max IL within PassBand | dB | <= 0.5 |
| Ripple within PassBand | dB | <= 0.3 |
| Reflection Isolation | dB | >=13.0 |
| Max IL within Reflect Band | dB | <= 0.2 |
| Ripple within Reflect Band | dB | <= 0.15 |
| Polarization Dependent Loss within PassBand | dB | <= 0.1 |
| Reflection of Backside AR Coating | % | <= 0.2 |
| Size (Length ´ Width ´ Thickness) | mm | (1.5+/-0.1) x (1.5+/-0.1) x (1.2+/-0.2) |
| Wedge Angle | degree | 0.2 |
| Edge/Corner Chip | mm | <= 0.1 |
| Scratch/Dig | 40 / 20 |
