光通被動濾片

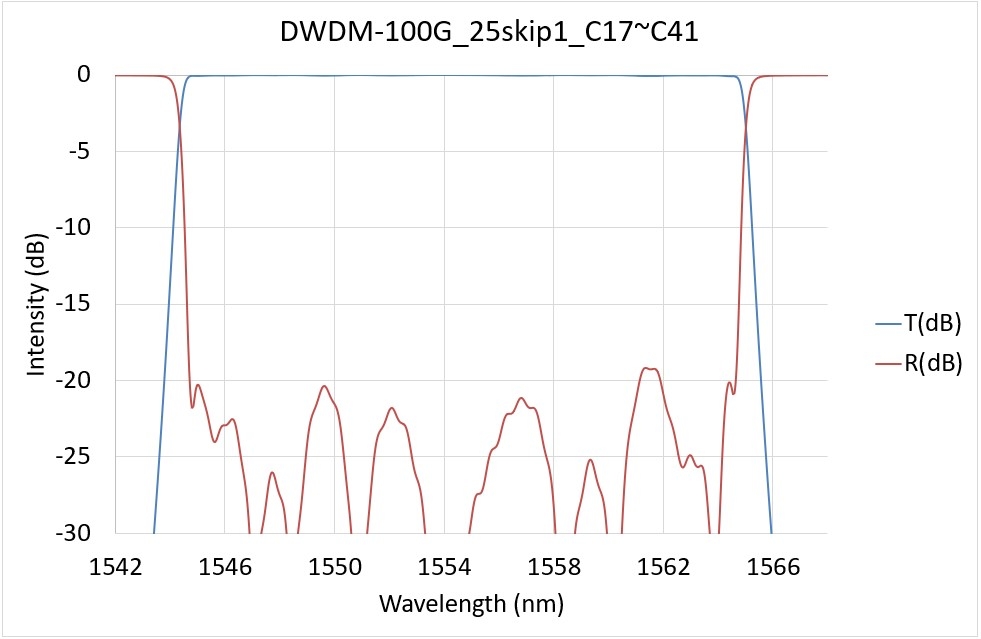

100G 25skip1
料號：BF0-5LAH6-1554
產品規格
| 100G 25skip1 | ||
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 1500~1620 |
| Center Wavelength Tolerance @ -3.0dB, AOI=0deg | nm | ITU+0.35~+0.65nm |
| Pass Band Width @ -0.5dB | nm | CH29 = CH17~41, PassBand ITU+/-0.18 |
| nm | Customize channel, PassBand ITU+/-0.18 | |
| Transmission Isolation within Adjacent Channel | dB | >=15 |
| ReflectBand width | nm | Skip one Adjacent channel ITU+/-0.18 |
| Max IL within PassBand | dB | <=0.4 |
| Ripple within PassBand | dB | <=0.25 |
| Reflection Isolation | dB | >=12 |
| Max IL within StopBand | dB | <=0.25 |
| Polarization Dependent Loss within PassBand | dB | <=0.1 |
| Reflection of Backside AR Coating | % | <=0.2 |
| Size (Length ´ Width ´ Thickness) | mm | (1.47+/-0.1) x (1.47+/-0.1) x (1.3+/-0.1) |
| Wedge Angle | degree | 0.2 |
| Edge/Corner Chip | mm | <=0.1 |
| Scratch/Dig | 40 / 20 | |
