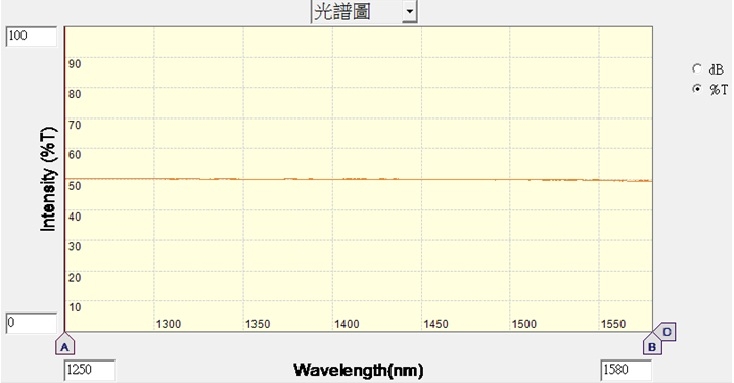

Tap Filter-50%, 1260~1570nm
料號：ND0-LLB3C-2957
產品規格
| Tap 50%, 1260~1570nm | ||
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 1260~1570 |
| AOI | degree | 1.8 |
| Transmittance(%) | % | 50+/-1% |
| Reflecttance | % | 50+/-1% |
| Reflection of Backside AR Coating | % | <=0.2 |
| Size (Length*Width*Thickness) | mm | (1.4+/-0.1)*(1.4+/-0.1)*(1.0+/-0.2) |
| Wedge Angle | degree | 0.2 |
| Edge/Corner Chip | mm | <=0.1 |
| Scratch/Dig | 40 / 20 | |
| Edge/Corner Chip | mm | <=0.1 |
| Scratch/Dig | 40 / 20 | |
