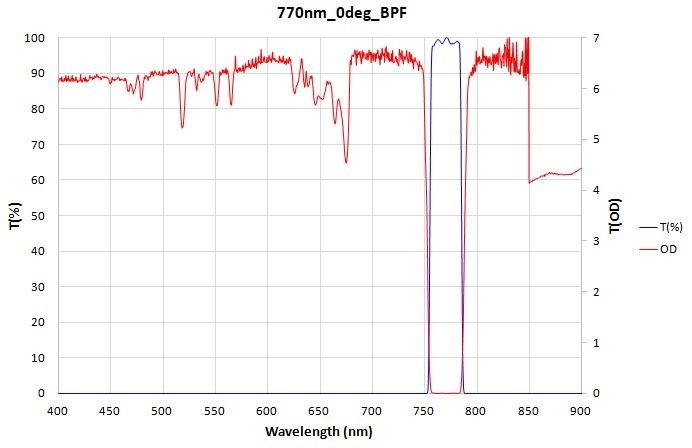

770nm_0deg_BPF
No.：VB1-MPA96-0761
Specifications
| 770nm_0deg_BPF | ||
| Parameters | Unit | Specifications |
| SUBSTRATE | FUSED SILICA | |
| SIZE | mm | TBD |
| SCRATCH-DIG | 60/40 | |
| ANGLE OF INCIDENT | degree | 0 |
| CONE HALF ANGLE | degree | >= 1.0 |
| PASSBAND RANGE | nm | 757-782 |
| PASSBAND AVERAGE TRANSMISSION | % | >= 95% |
| PASSBAND ABSOLUTE TRANSMISSION | % | >= 90% |
| BLOCK BAND OD > 3 | nm | 400-751, 788-900 |
| PASSBAND RANGE AR COATING | % | <=0.5% |
| CLEAR APERTURE | % | >= 80% |
