光通无源膜片

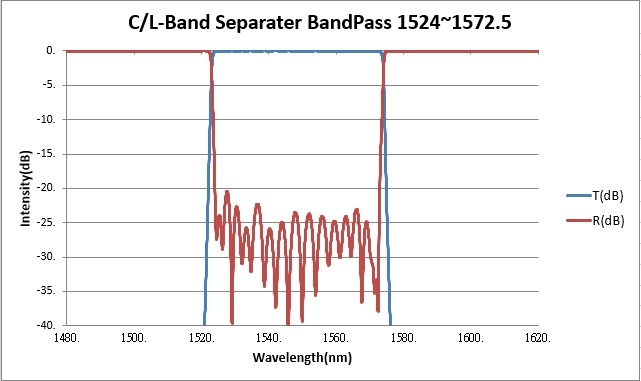

C/L-Band Separater_BandPass
料号：BF0-3MCFA-5257
产品规格
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 1484.5~1630 |
| Angle of Incident | degree | 1.8 |
| Pass Band Width | nm | 1524~1572.5 |
| Stop Band Width | nm | 1484.5~1517.5 & 1575~1630 |
| Transmission Isolation | dB | >=40 @ 1484.5~1517.5nm >=15 @ 1575~1630 |
| Max IL within PassBand | dB | <=0.3 |
| Ripple within PassBand | dB | <=0.2 |
| Reflection Isolation | dB | >=15.0 |
| Max IL within StopBand | dB | <=0.2 |
| Ripple within StopBand | dB | <=0.15 |
| Polarization Dependent Loss within PassBand | dB | <=0.1 |
| Reflection of Backside AR Coating | % | <=0.2 |
| Size (Length ´ Width ´ Thickness) | mm | (1.4+/-0.1)x(1.4+/-0.1)x(0.9~1.4) |
| Wedge Angle | degree | 0.2 |
| Edge/Corner Chip | mm | 0.1 / 0.15 |
| Scratch/Dig | 40 / 20 |
