光通无源膜片
Tap Filter-5%, 1260~1650nm
料号：ND0-TAF3C-2661
产品规格
| Tap 5%, 1260~1610nm | ||
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 1260~1610 |
| AOI | degree | 1.8 |

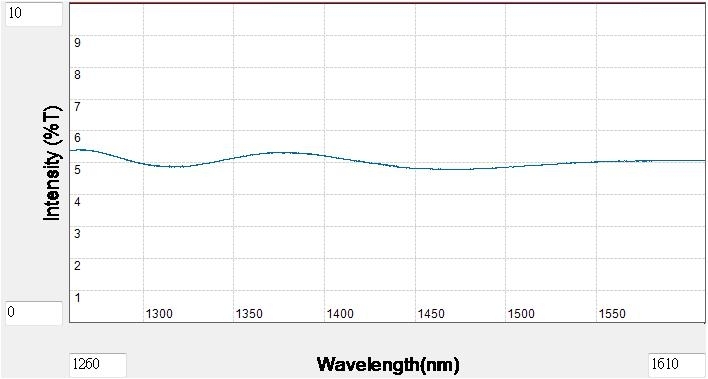

| Transmittance(%) | % | 5+/-0.5% |
| Reflecttance | % | 95+/-0.5% |
| Reflection of Backside AR Coating | % | <=0.2 |
| Size (Length*Width*Thickness) | mm | (1.4+/-0.1)*(1.4+/-0.1)*(1.0+/-0.2) |
| Wedge Angle | degree | 0.2 |
| Edge/Corner Chip | mm | <=0.1 |
| Scratch/Dig | 40 / 20 | |
| Edge/Corner Chip | mm | <=0.1 |
| Scratch/Dig | 40 / 20 | |
