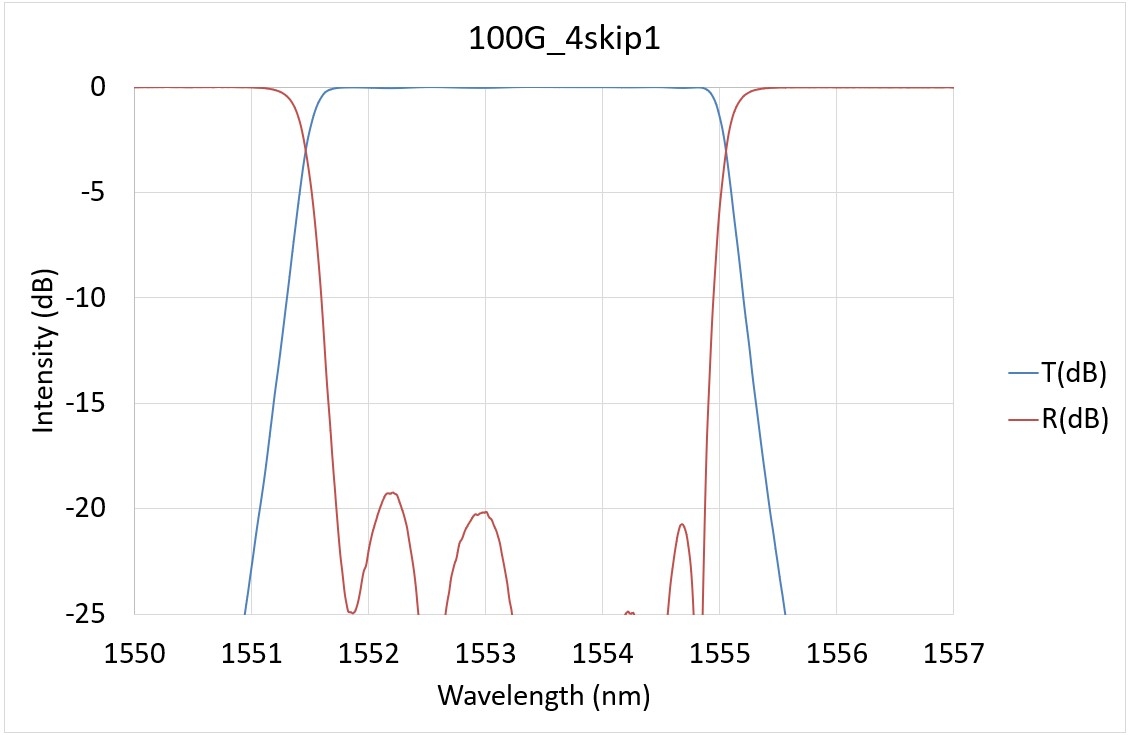

100G_4skip1
部品番号：C41
製品仕様
| 100G_4skip1 | ||
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 1500~1600 |
| Center Wavelength Tolerance @ -3.0dB, AOI=0deg | nm | ITU+0.3~+0.65nm |
| Pass Band Width @ -0.5dB | nm | CH21.5, C20~C23, ITU+/-0.25 |
| CH22.5, C21~C24, ITU+/-0.25 | ||
| CH24.5, C22~C26, ITU+/-0.25 | ||
| CH26.5, C25~C28, ITU+/-0.25 | ||
| CH27.5, C26~C29, ITU+/-0.25 | ||
| CH28.5, C27~C30, ITU+/-0.25 | ||
| CH29.5, C28~C31, ITU+/-0.25 | ||
| CH30.5, C29~C32, ITU+/-0.25 | ||
| CH31.5, C30~C33, ITU+/-0.25 | ||
| CH32.5, C31~C34, ITU+/-0.25 | ||
| CH33.5, C32~C35, ITU+/-0.25 | ||
| CH35.5, C33~C36, ITU+/-0.25 | ||
| CH36.5, C34~C37, ITU+/-0.25 | ||
| CH37.5, C35~C38, ITU+/-0.25 | ||
| CH38.5, C36~C39, ITU+/-0.25 | ||
| CH40.5, C39~C42, ITU+/-0.25 | ||
| CH42.5, C41~C44, ITU+/-0.25 | ||
| CH43.5, C42~C45, ITU+/-0.25 | ||
| CH46.5, C45~C48, ITU+/-0.25 | ||
| CH47.5, C46~C49, ITU+/-0.25 | ||
| CH53.5, C52~C55, ITU+/-0.25 | ||
| CH54.5, C53~C56, ITU+/-0.25 | ||
| CH56.5, C55~C58, ITU+/-0.25 | ||
| CH57.5, C56~C59, ITU+/-0.25 | ||
| Transmission Isolation within Adjacent Channel | dB | >= 25 |
| ReflectBand width | nm | Skip one Adjacent channel ITU+/-0.25 |
| Max IL within PassBand | dB | <= 0.35 |
| Ripple within PassBand | dB | <= 0.25 |
| Reflection Isolation | dB | >= 13.5 |
| Max IL within StopBand | dB | <= 0.2 |
| Polarization Dependent Loss within PassBand | dB | <= 0.1 |
| Reflection of Backside AR Coating | % | <= 0.2 |
| Size (Length ´ Width ´ Thickness) | mm | (1.4+0.03/-0.1) x (1.4+0.03/-0.1) x (1.0±0.1) |
| Wedge Angle | degree | 0.2 |
| Edge/Corner Chip | mm | <= 0.1 |
| Scratch/Dig | 40 / 20 | |
