製品情報
光学フィルター(パッシブ)

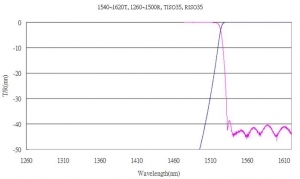

FWDM-1540~1620T, 1260~1500R, TISO35, RISO35
部品番号：ER0-1ACFA-5625
製品仕様
| 1540~1620T, 1260~1500R, TISO35, RISO35 Filter (FWDM) | ||
| Parameters | Unit | Specifications |
| Operation Wavelength | nm | 1260~1620 |
| Angle of Incident | degree | 1.8 |
| Pass Band Width | nm | 1540~1620 |
| Stop Band Width | nm | 1260~1500 |
| Transmission Isolation | dB | >= 40 |
| Max IL within PassBand | dB | <= 0.3 |
| Ripple within PassBand | dB | <= 0.2 |
| Reflection Isolation | dB | >= 35 |
| Max IL within StopBand | dB | <= 0.2 |
| Ripple within StopBand | dB | <= 0.15 |
| Polarization Dependent Loss within PassBand | dB | <= 0.1 |
| Reflection of Backside AR Coating | % | <= 0.2 |
| Size (Length*Width*Thickness) | mm | (1.4+/-0.1)*(1.4+/-0.1)*(1.0+/-0.2) |
| Wedge Angle | degree | 0.2 |
| Edge/Corner Chip | mm | <= 0.1 |
| Scratch/Dig | 40 / 20 | |
