光学フィルター(パッシブ)

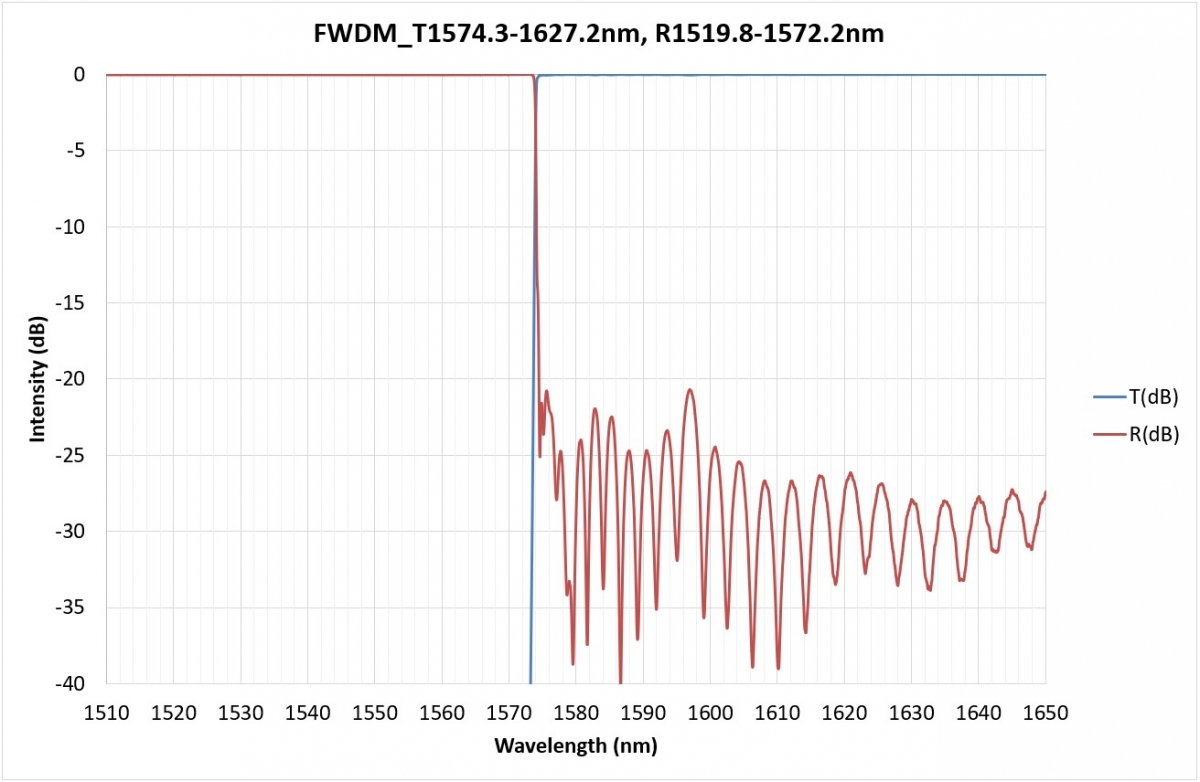

FWDM_T1574.3-1627.2nm, R1519.8-1572.2nm

部品番号:ED0-TKBMG-6251

製品仕様

Parameters Unit Specifications
Operation Wavelength nm 1510~1650
Angle of Incident degree 1.8
Pass Band Width nm 1574.3~1627.2
Stop Band Width nm 1519.8~1572.2
Transmission Isolation dB >=36
Max IL within PassBand dB <=0.25
Ripple within  PassBand dB <=0.15
Reflection Isolation dB >=13.5
Max IL within StopBand dB <=0.15
Polarization Dependent Loss within PassBand dB <=0.05
Reflection of Backside AR Coating % <=0.2
Size (Length*Width*Thickness) mm (1.4+/-0.1)*(1.4+/-0.1)*
(1.2+/-0.2)
Wedge Angle degree 0.5+/-0.2
Edge/Corner Chip mm <=0.1
Scratch/Dig   40 / 20
BACK
TOP
