光学フィルター(パッシブ)

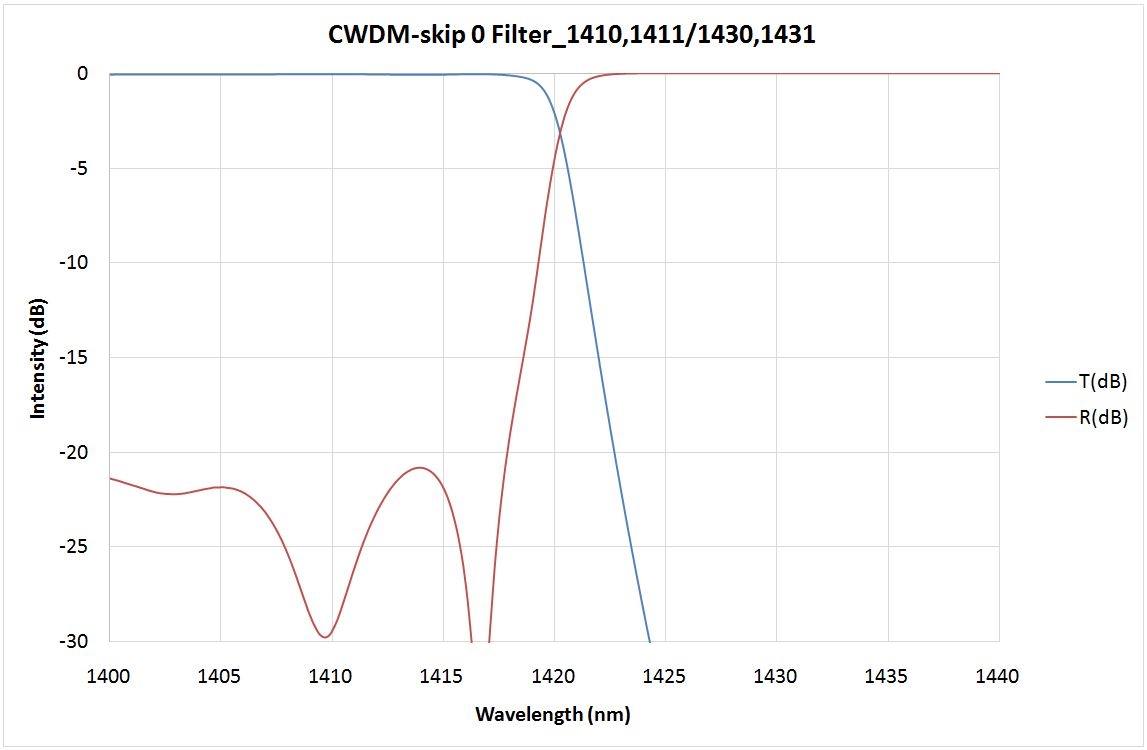

CWDM-skip 0 Filter_1410,1411/1430,1431

部品番号:ED0-FCT7D-2661

製品仕様

1410,1411/1430,1431 CWDM skip 0 Filter
Parameters Unit Specifications
Operation Wavelength nm 1260~1620
Angle of Incident degree 1.8
Pass Band Width nm 1260~1417 or 1260~1418
Stop Band Width nm 1423~1620 or 1424~1620
Transmission Isolation dB >= 30
Max IL within PassBand dB <= 0.3
Ripple within  PassBand dB <= 0.2
Reflection Isolation dB >= 13.0
Max IL within StopBand dB <= 0.2
Ripple within StopBand dB <= 0.15
Polarization Dependent Loss within PassBand dB <= 0.1
Reflection of Backside AR Coating % <= 0.2
Size (Length*Width*Thickness) mm (1.4+/-0.1)*(1.4+/-0.1)*(1.0+/-0.2)
Wedge Angle degree 0.2
Edge/Corner Chip mm <= 0.1
Scratch/Dig   40 / 20
